Product Overview

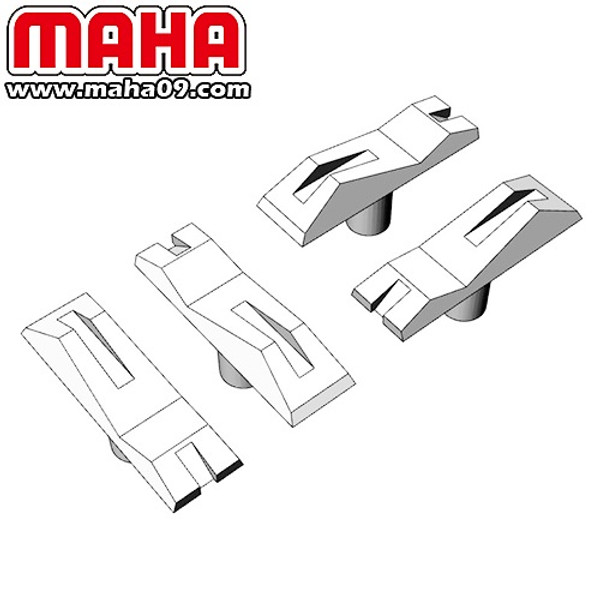

Finely molded metal part that can add additional detail to your model kit. Comes in multiple sizes and easy to apply.
To Apply
- Prepare surface by drilling a hole using the recommended drill bit size
- Apply a small application of glue on the piece.
- Slot into the newly drilled hole.
Optional: Paint over so it blends into the part
8 pieces per pack

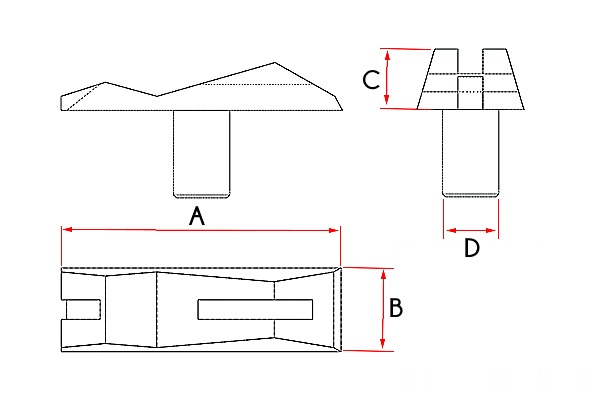

| Length (A) | Width (B) | Height (Excluding Pin slot) (C) | Recommended drill bit size (D) |
|
3.0mm |
1.0mm | 0.6mm | 1mm |
|
3.5mm |
1.1mm | 0.6mm | 1mm |
|
4.0mm |
1.3mm | 0.7mm | 1mm |
|
4.5mm |
1.4mm | 0.8mm | 1mm |
|
5.0mm |
1.5mm | 0.9mm | 1mm |
|
6.0mm |
1.9mm | 1.1mm | 1.5mm |
|
7.0mm |
2.1mm | 1.4mm | 1.5mm |
|
8.0mm |
2.5mm | 1.5mm | 2.0mm |
|
9.0mm |
2.9mm | 1.6mm | 2.0mm |
|
10.0mm |
3.0mm | 1.7mm | 2.0mm |
